Glass edging wastewater treatmentt system

Glass edging wastewater treatmentt system

Equipment ID：MX-2024001
Equipment Name：Integrated Reaction Tank
Tank Thickness: 6mm
Tank Dimension:
φ1500*3600MM,φ2000*3850MM,φ2500*3950MM,φ2800*4500MM,φ3000*5200MM,φ3500*5200MM,φ2800*4500MM,φ3000*5200MM,φ3500*5200MM,φ3000*5200MM
Tank Processing Capacity: 10m³/h,20m³/h,30m³/h,45m³/h,60m³/h,75m³/h,90m³/h,120m³/h,150m³/h,180m³/h

1. Why choose edging wastewater treatment System?

The machining of glass creates glass finings，which not only pollutes the process water and affects the quality of glass processing. Fine scratches on the glass surface caused by the recycling of glass grinding wastewater.and will also cause the water outlet of the glass processing machine to be clogged, causing the machine to not discharge water and the equipment to rust easily. The grinding wheel will wear out, the glass will burn and explode,and the service life of the machine will also be shortened. Therefore, the treatment of glass edging wastewater is necessary.

Minxin edging wastewater treatment system helps solve this problem.It not only greatly reduces the time-consuming cleaning of the machine's wastewater treatment system, but also extends the service life of the glass processing machine with clean process water,significantly improve the quality of glass processing and production efficiency.

2. Edging Wastewater Solution

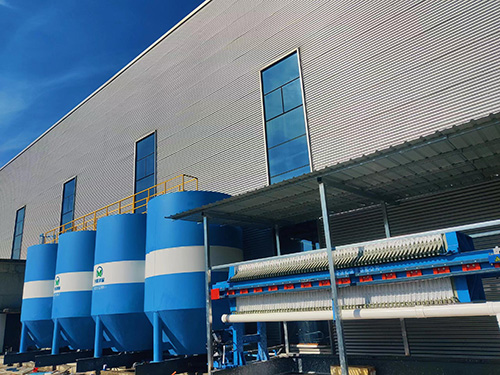

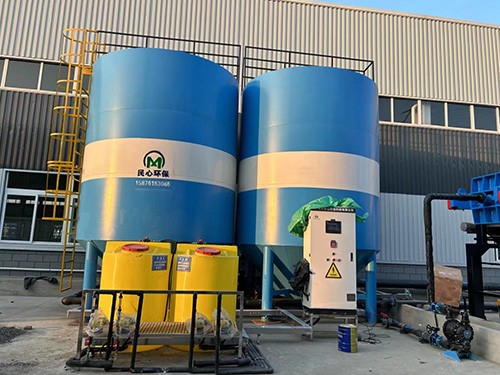

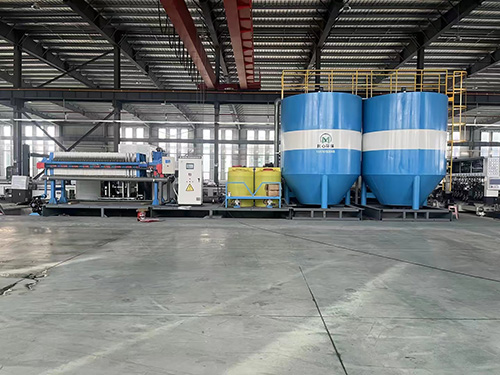

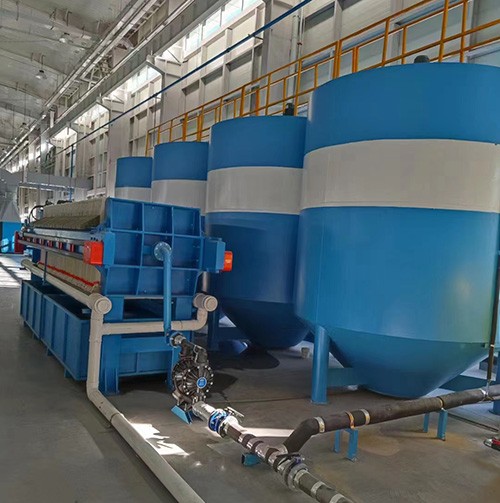

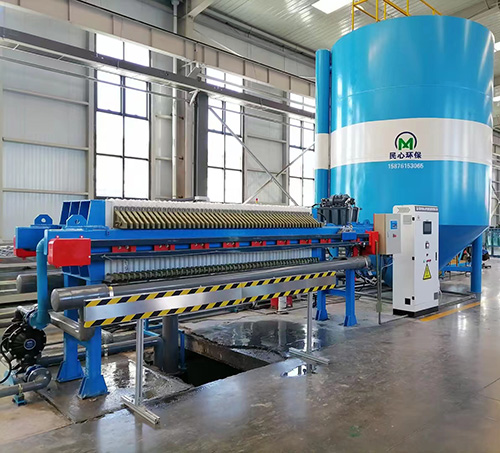

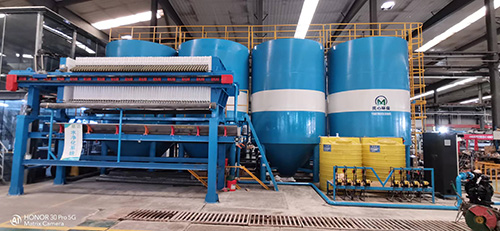

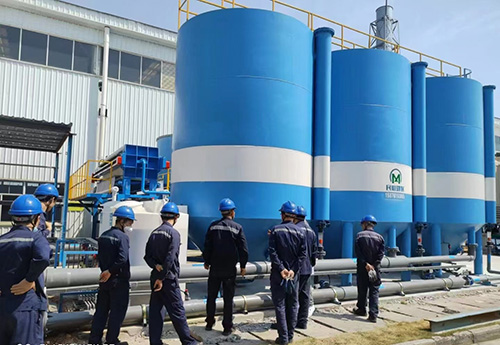

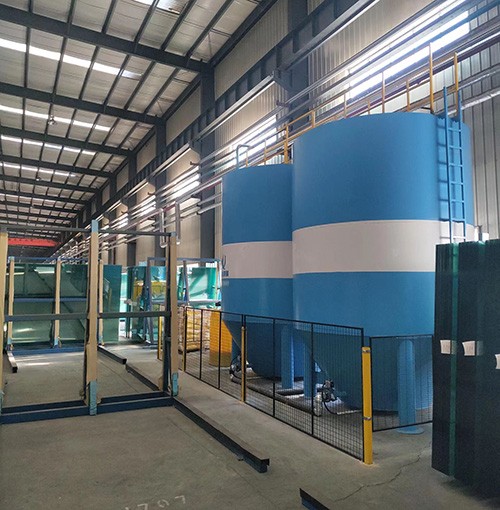

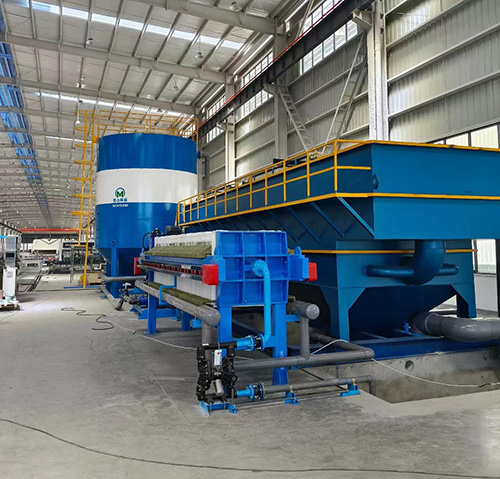

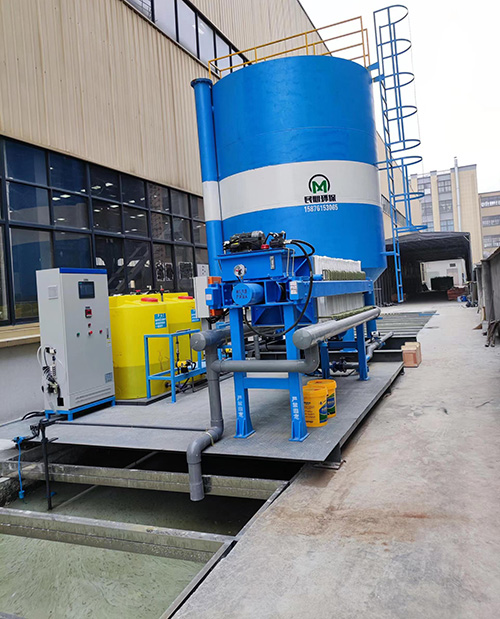

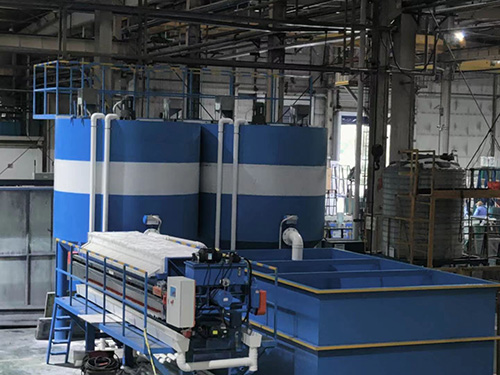

The treatment process of this system is to collect wastewater discharged from multiple glass edger machine or beveling & mitering machine, drill machine,sanding machine,CNC etc into a wastewater pool. an aeration device is installed at the bottom of the wastewater collection pool, to make the glass finings is not easy to precipitate on the bottom of the pool. the integrated reaction tank integrates water pumping, dosing, reaction and drain. The treated clean water is discharged into the clean water tank for recycling in the glass grinding edge, which can greatly reduce the blockage and damage of the water outlet nozzle of the glass grinding edge machine, prolong the service life of the machine, and improve the grinding efficiency; The solid waste treated by the efficient integrated reaction tank is discharged into the sludge pool, and then pumped by a diaphragm pump to the filter press to press it into a solid glass plate. The solid glass plate can be directly treated afterwards to avoid environmental pollution.

3. Edging Wastewater Treatment System Configuration
